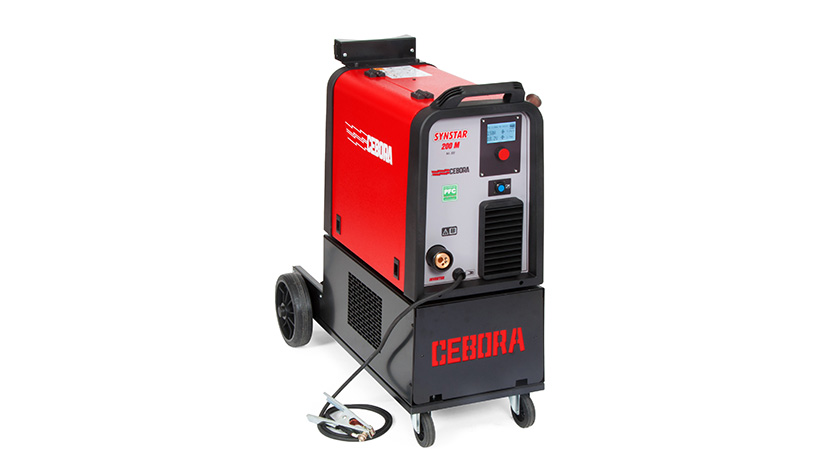

The new SYNSTAR 200 M is an inverter single-phase synergic power source for MIG-MAG welding, with 2-roller Cebora wire feed unit.
The power source features synergic curves for Ø 0.6 / 0.8 / 0.9 / 1.0mm solid wire as well as for Ø 0.9 mm fl ux cored wire. The cored wires can be welded either with or without shielding gas, by simple polarity reverse.
As optional is available a pulse function upgrade (Art.238) that allows to activate devoted pulse synergic curves for mild steel, stainless steel, aluminium and Cusi3.
The LCD panel allows the operator to read wire and gas type, current and thickness, voltage and wire speed.
The power source is complete with many functions adjustable from control panel like:
- Arc Length
- 2 time
- 4 time
- Spot Time
- Pause Time
- Inductance
- Burn Back
- Soft Start
It is a specially versatile power source, suitable for various applications, especially repairs, maintenance and car body repairs, marked out by a low electrical input (PFC).
The Euro connector allows to use either a standard MIG torch or the Cebora Push-Pull 2003 torch.
It is possible to work with two different types of coils: Ø 200 mm or Ø 300 mm.
Complies with en 61000-3-12.
