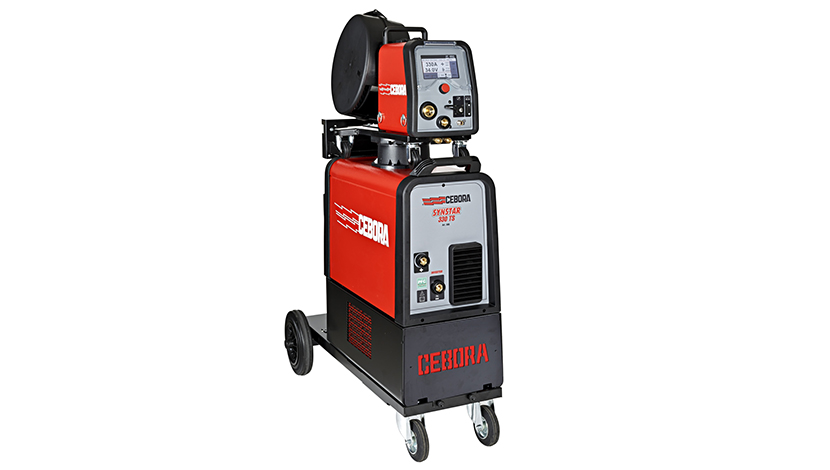

The new SYNSTAR 330 TS is a multiprocess inverter three-phase synergic power source for MIG-TIG-MMA welding, with 4-roller Cebora wire feed unit (Ø 30mm, 0,098 ft).
Factory fitted with current double level (MIG Short process), pulse and double pulse function, the SYNSTAR 330 TS has more than 70 welding programs available for Ø 0.8/0.9/1.0/1.2mm solid wire, as well as of stainless steel pulsed programs optimized for welding of thin thicknesses.
This power source can be equipped with 3 different types of torch:
- 4 m air cooled push-pull torch art. 2003 (160A at 40%); the machine output current is automatically limited to 200A max.
- 3,5 m air cooled Cebora torch art. 1239 (380A at 60%).
- 3,5 m water cooled Cebora torch art. 1241 (380A at 60%).
The LCD TOUCH SCREEN panel allows the operator to read and select process, wire and gas type, current and thickness, voltage and wire speed.
The power source is complete with many functions adjustable from the TOUCH SCREEN control panel such as: Arc Length, short or pulsed welding process, 2 times / 4 times, Spot Time, Pause Time, Inductance, push-pull force, Burn Back, Soft Start, pre-gas and post gas.
The power source can be connected to the wireless auto darkening filter (art.434) for protection mask.
An optional cooling unit (art. 1681), as well as an upgrade to the TIG function (art.234) are also available.
It is a specially versatile power source, suitable for various applications, in particular for medium metal works, marked out by a low electrical input (PFC).
Complies with EN 61000-3-12.
